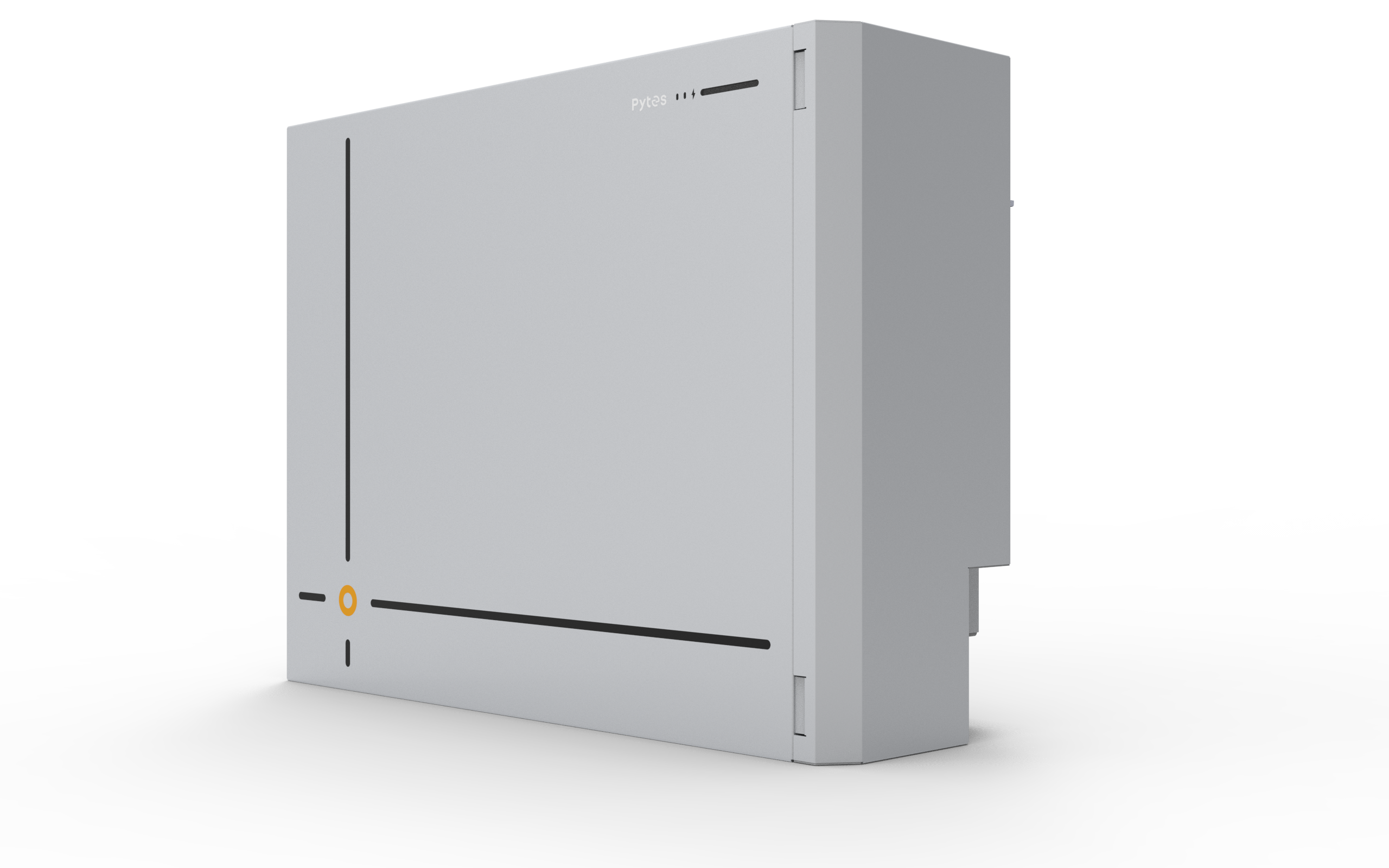

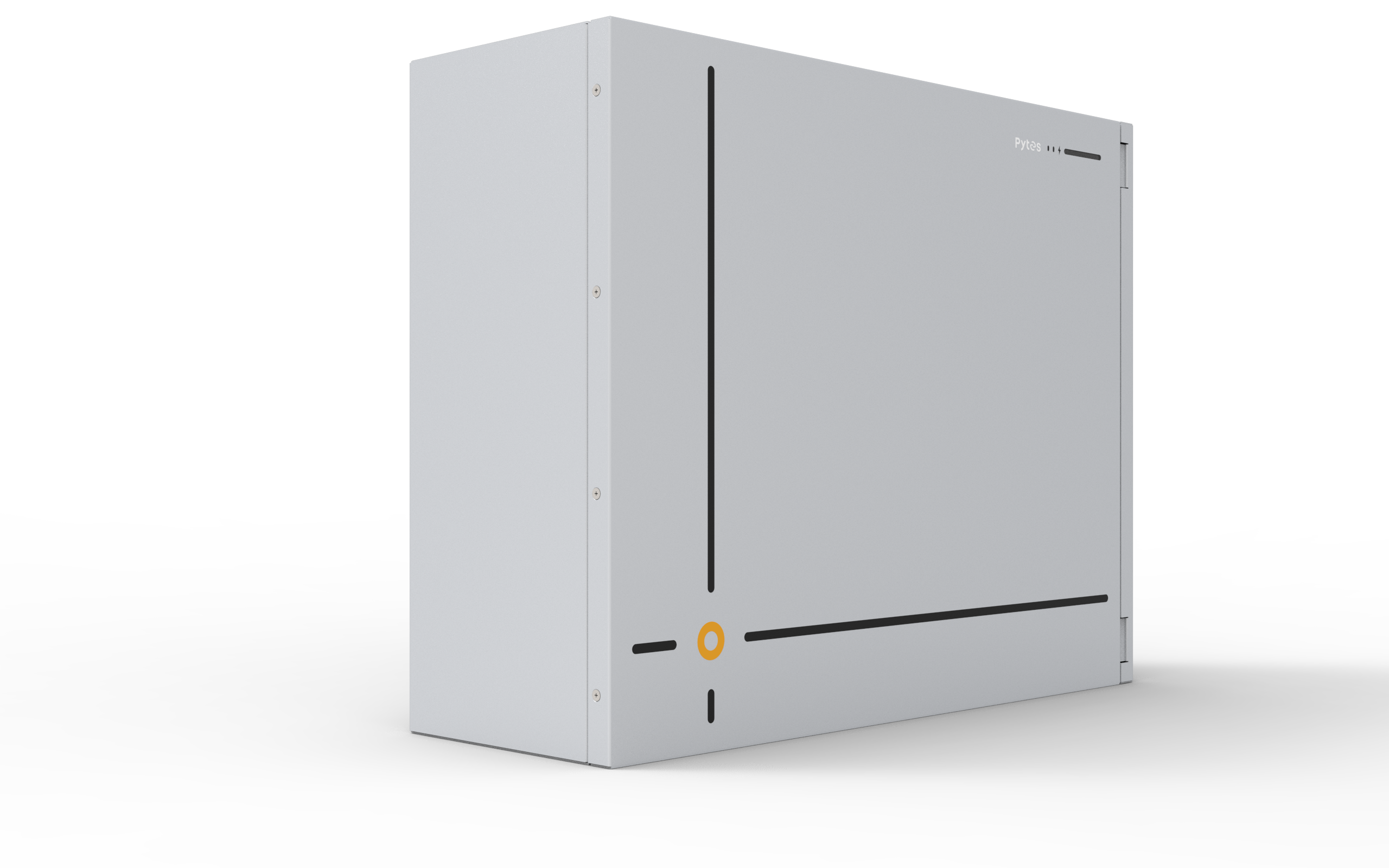

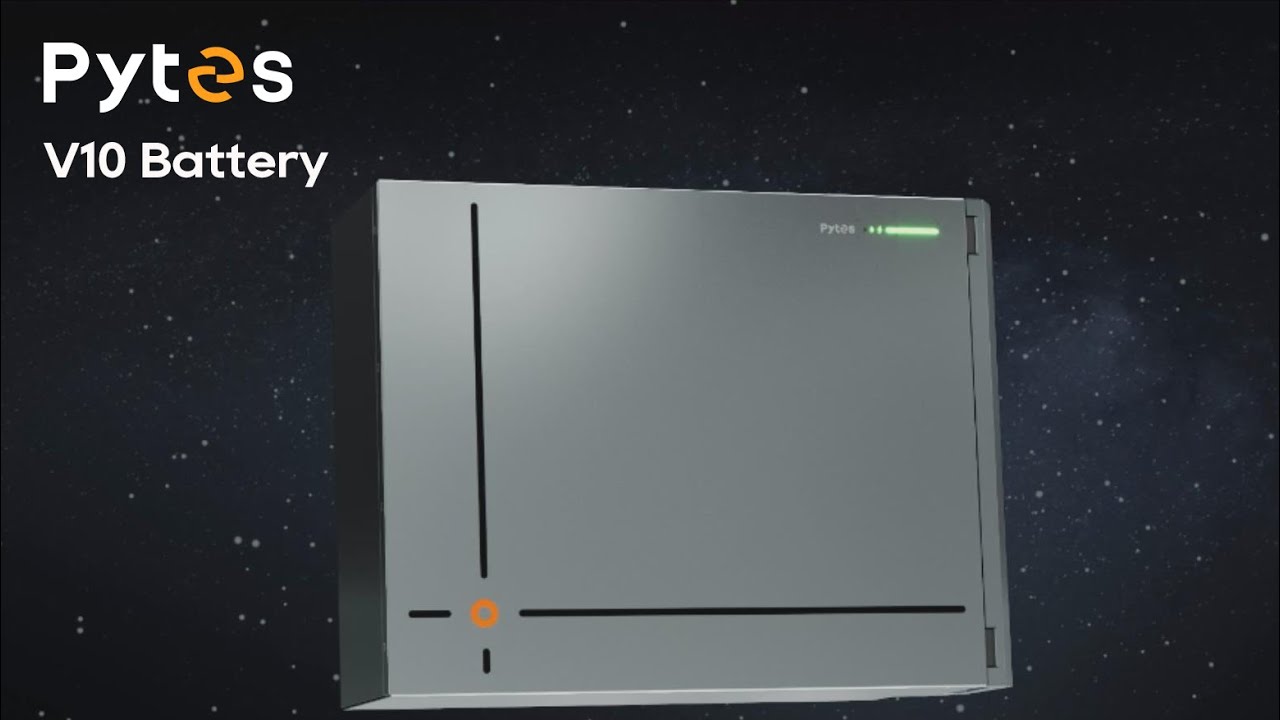

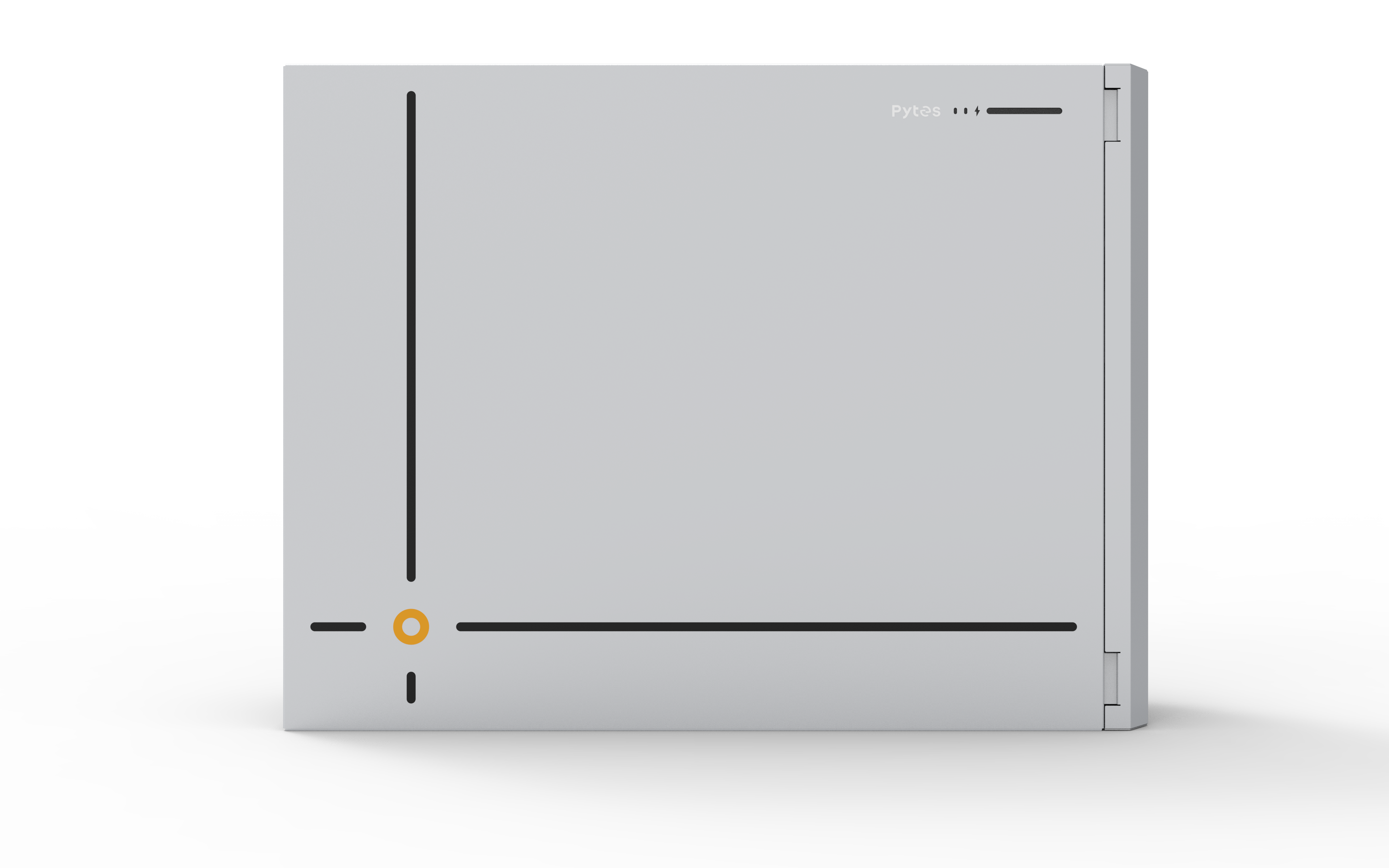

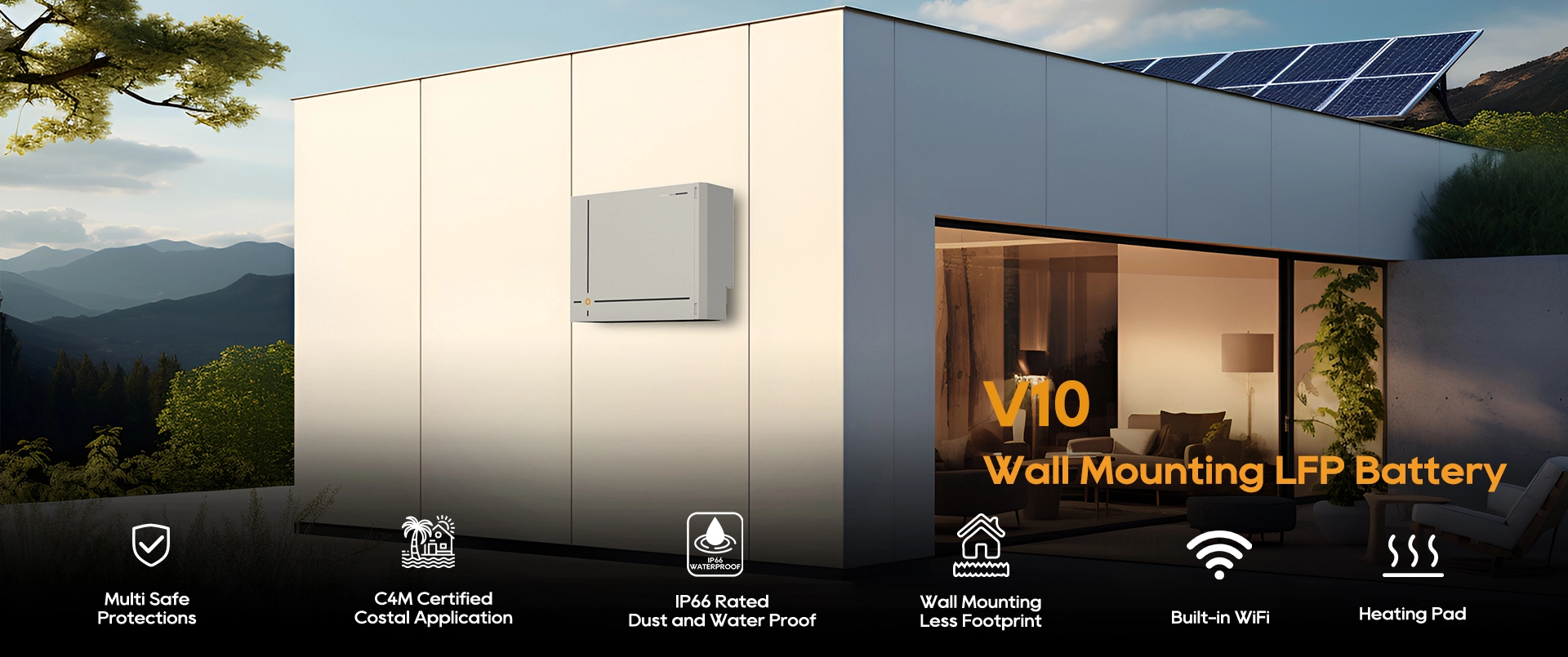

Wall Mounted Outdoor Residential LFP Battery


The Introduction of the Revolutionized Product V10

Are you prepared to adopt the latest in-home energy management? Solar Battery Manufacturer offers cutting-edge home battery storage systems that are revolutionizing the way we store and use energy. These innovative solutions are designed to improve energy usage, sustainability, and efficiency. Let's explore home battery systems and see how Solar Battery Manufacturer is at the forefront of this transformative technology."


Efficient Energy Storage

Pytes Energy's home battery system V10 is at the forefront of efficient energy storage solutions. Designed to work seamlessly with solar panels and renewable energy sources, these batteries enable households to harness, store, and use excess energy for when it's needed most. With advanced storage capacities and intelligent management systems, homeowners can enjoy reliable backup power and reduce their dependence on the traditional grid.

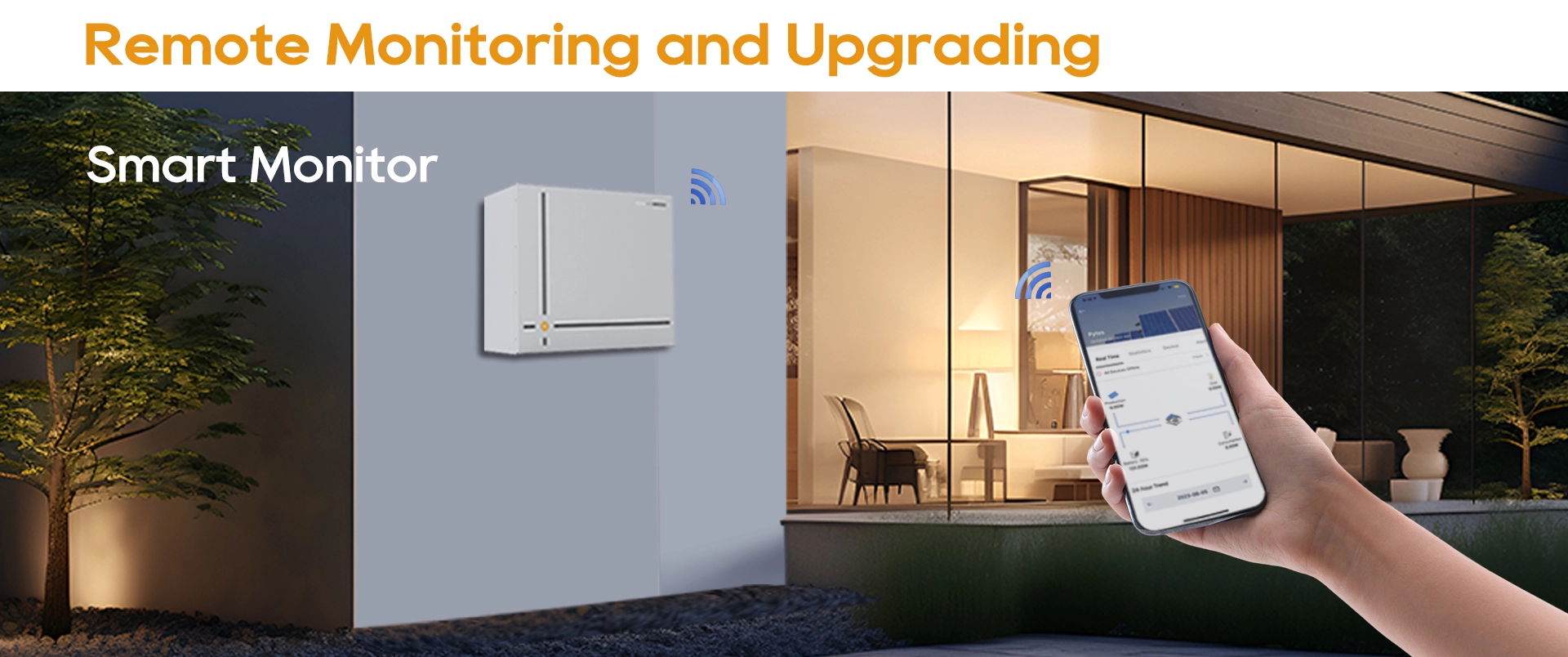

Smart Energy Management

By integrating cutting-edge technology, Pytes Energy's home battery system V10 provides smart energy management features that allow you to monitor and optimize your energy usage with App. You can gain real-time insights into your energy consumption, enabling you to make informed decisions that maximize efficiency and savings.


Seamless Integration

One of the key advantages of Pytes Energy's home battery systems V10 is their seamless integration with most main inverters in the market. Also, we are strategy collaboration partner with Sol-Ark. This seamless compatibility ensures that homeowners can fully harness the potential of their solar panels, while the excess energy is efficiently stored and utilized, enhancing the overall sustainability of their energy usage.


Pytes Energy's latest home battery system V10° is a significant innovation in energy management. They are designed to prioritize sustainability, efficiency, and dependability, and are specifically created to transform the way energy is stored, managed, and used in households. By incorporating Pytes Energy's advanced home battery systems, you can manage your energy future, decrease your environmental impact, and experience significant long-term savings. Embrace the future and energize your home with Pytes Energy's home battery systems!

Battery ModelV10
Electrical
Nominal Voltage51.2V
Operating Voltage Range47.5~57.6V
Nominal Capacity230Ah
Nominal Energy11.776kWh
Usable Energy10.24kWh
Recommended Charge/Discharge Current100A(5.12kW)
Peak Discharge Current300A@15s
General
ChemistryLFP

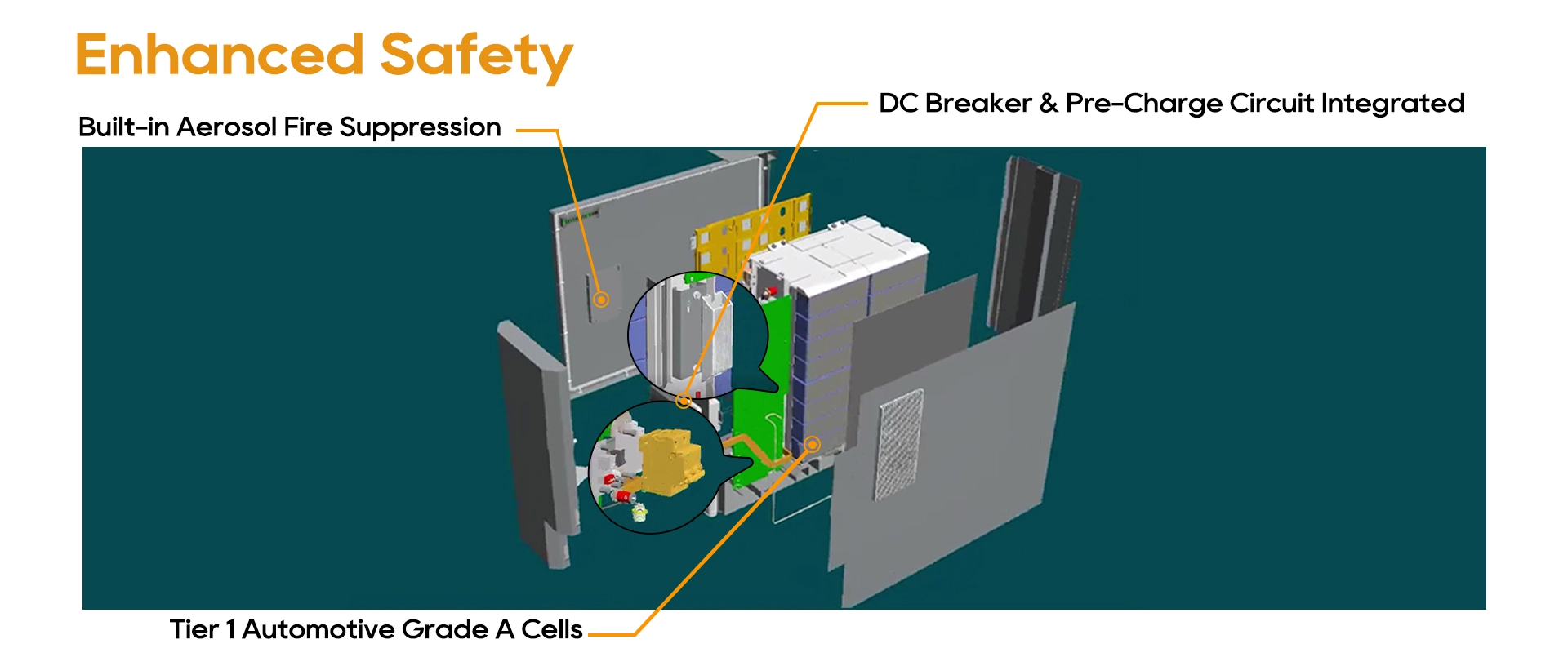

StructureDC Breaker & Pre-Charge Circuit Integrated
Communication InterfaceRS485 / CAN / WIFI / Dry Contact
Dimensions(L x W x H)640 x 230 x 520mm / 25.20 x 9.06 x 20.47inch
Weight100kg / 220.5lbs
Operating TemperatureCharge: 0~55°C / 32~131°F / Discharge: -20~55°C / -4~131°F
Cycle Life*8000 Cycles
Altitude<13123.35ft / 4000m
Warranty

10 Years Basic Warranty
Fee Based Extra 2 Years Coverage

Ingress ProtectionlP66
Corrosion Resistance ClassC4M

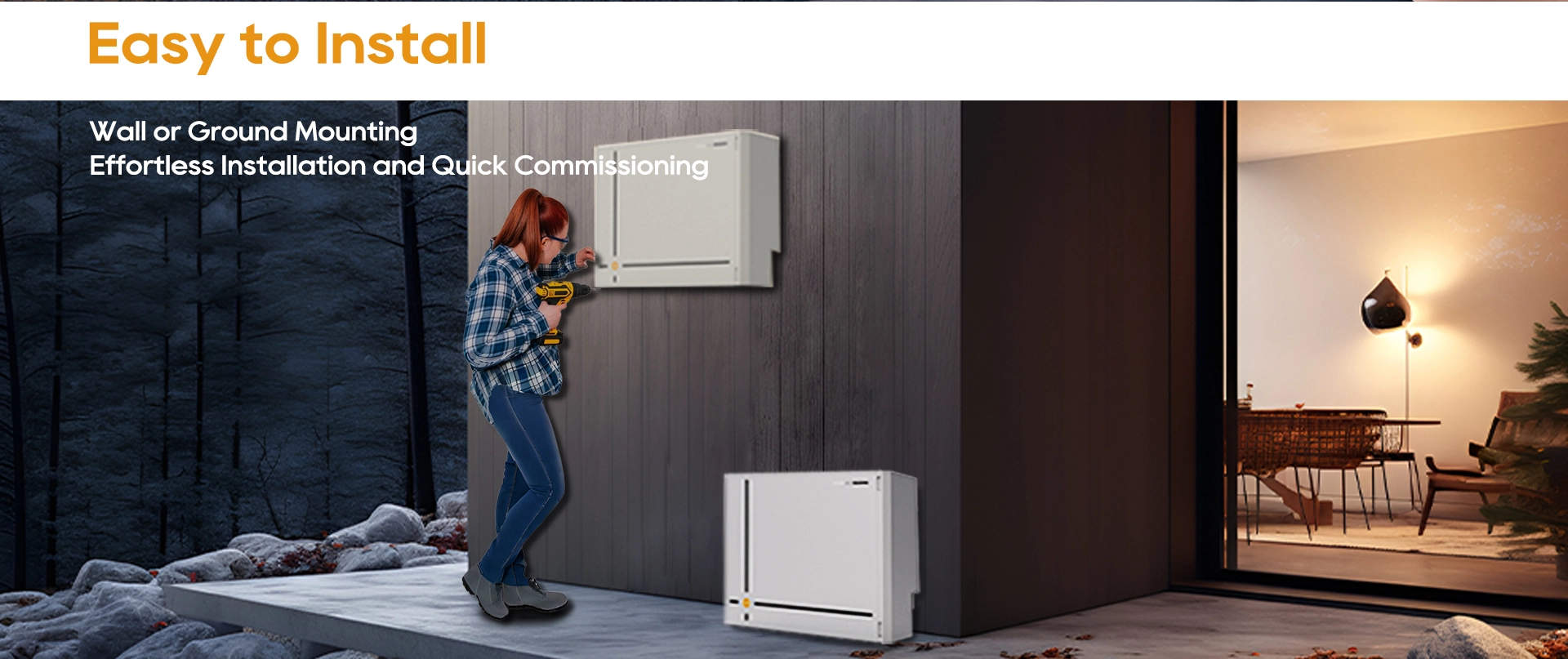

Mounting MethodWall / Ground (W/ Optional Battery Tray)
Heating Pad (Integrated)Temperature Rise: 8°C/h / 14.4°F/h
Certifications
UL 9540, UL 9540A, UL 1973, CEC, SGIP, IEC62619, CE, UN38.3
